URIMatcher

github: T0901-SetupContentProvider , T0902-AddURLsToContract , T0903- UriMatcher , uriMatcher for TASKS_ID

* The screenshots in the blog are from the Udacity Nanodegree Program: Become an Android Developer *

URI –

  1. Identify your provider
  2. Identify different types of data that the provider can work with

URI Structure –

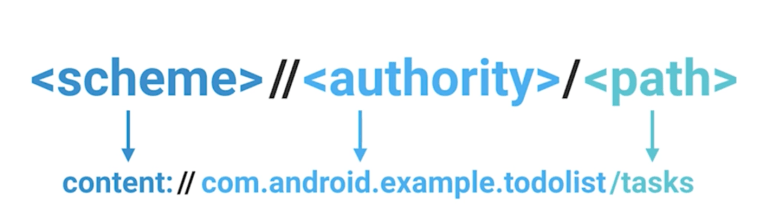

Screen Shot 2017-10-16 at 4.43.02 PM

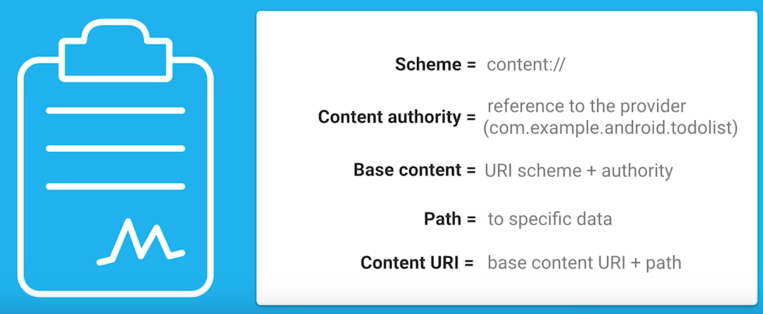

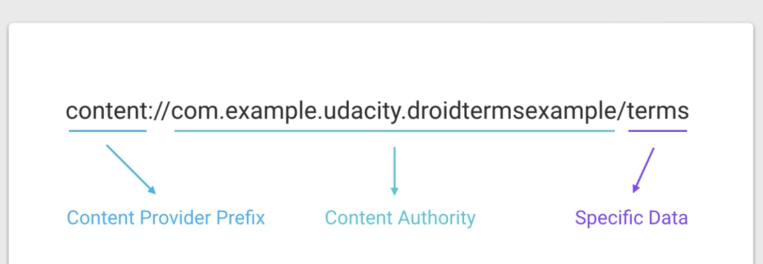

Screen Shot 2017-10-05 at 4.35.00 PMScreen Shot 2017-10-16 at 5.13.12 PM

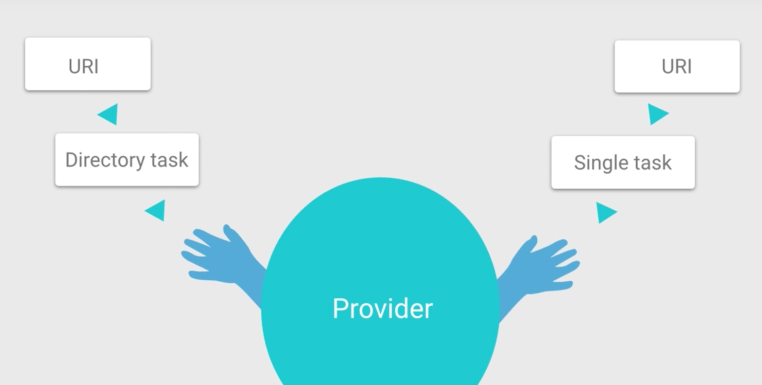

Screen Shot 2017-10-18 at 5.44.59 PM

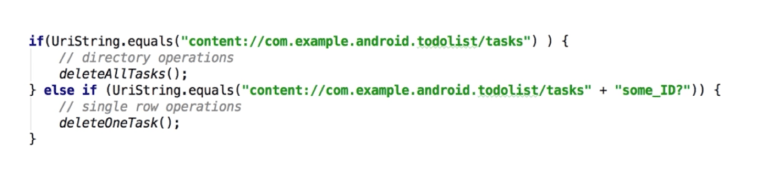

When we want to check a URI tasks, we may have the below statement. But that can be tricky if a string has an integer ID at the end.

Screen Shot 2017-10-18 at 5.44.39 PM

URIMatcher –

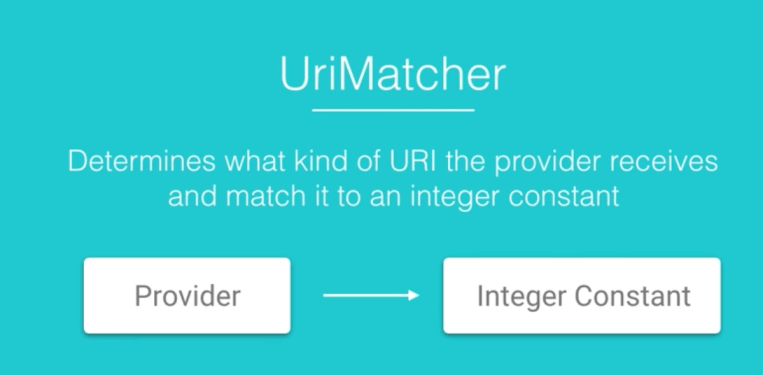

Screen Shot 2017-10-18 at 5.45.39 PM

As long as the URI has an integer (“/#”) after the initial tasks path, this matcher will recognize it and associate it with the int constant TASK_WITH_ID.

Screen Shot 2017-10-18 at 6.24.46 PM

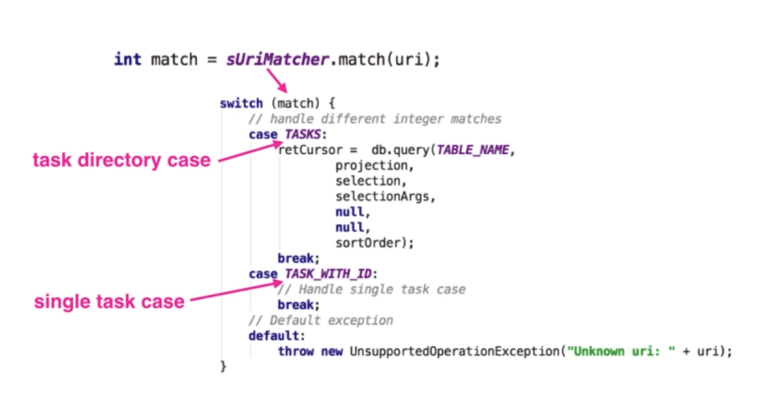

Screen Shot 2017-10-18 at 5.46.14 PM
